Co-IP Tips & Traps: The Secrets Behind a Successful Pull-Down
I Co-IP Quick Science Byte

What exactly is Co-IP?

Co-immunoprecipitation (Co-IP) is a widely used technique that leverages target-specific antibodies bound to Protein A/G magnetic or agarose beads to isolate a protein of interest along with its interacting partners[1].

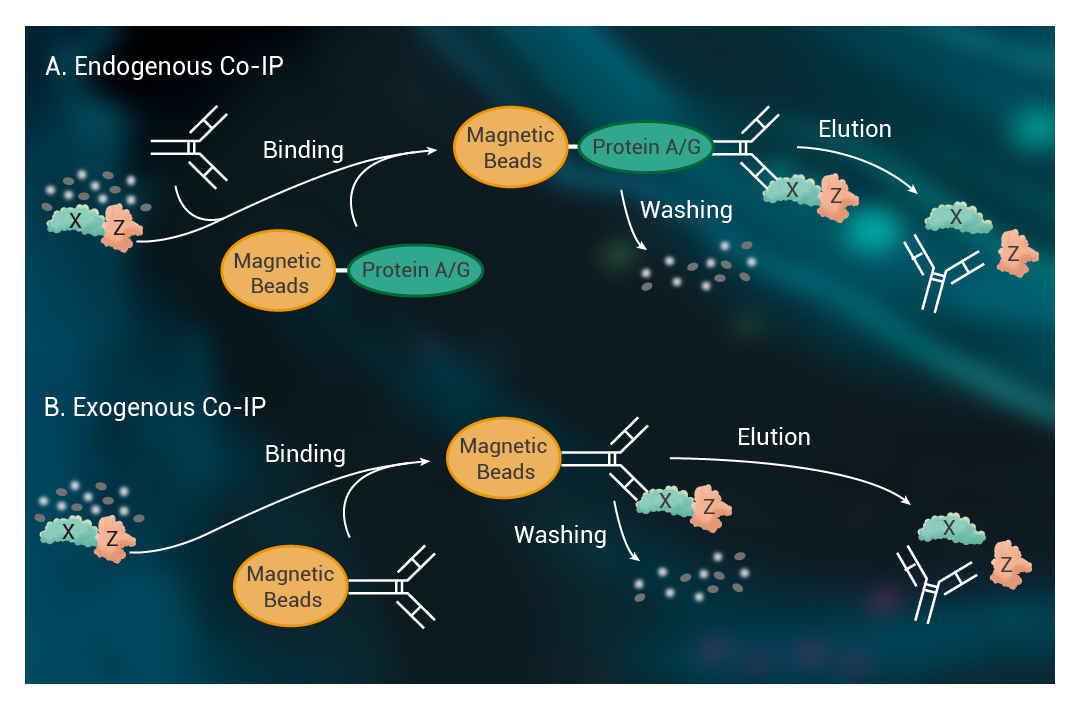

Figure 1. Schematic of the Co-IP Principle. X: Bait protein, Z: Target (interacting) protein

In simpler terms, it's like sending out a VIP invite (the antibody) to your favorite protein—and seeing which other proteins tag along to the party. This “molecular hang-out” helps us identify which proteins are likely interacting in the cellular environment.

Types of Co-IP

Co-IP can be categorized based on factors such as the type of antibody used, the expression mode of the target protein, and the sample source. Common classifications include monoclonal vs. polyclonal antibody Co-IP, endogenous vs. exogenous Co-IP, and exploratory vs. validation Co-IP. Among these, endogenous and exogenous Co-IP are like the “twin stars” of protein interaction studies—widely used and each with their own unique brilliance.

Quick Tip:

Endogenous Co-IP: Investigates proteins naturally expressed in cells or tissues.

Exogenous Co-IP: Focuses on proteins expressed through transfection-based overexpression systems.

II Workflow & Data Interpretation

Co-IP Procedure


Figure 2. Co-IP Workflow Diagram[1].

Co-IP Procedure (using endogenous Co-IP as an example)

Sample Preparation: Collect cells using an appropriate method and lyse them with Lysis Buffer containing suitable protease inhibitor cocktail to preserve protein-protein interactions.

Bead Preparation: Gently resuspend Protein A/G Magnetic Beads or Protein A/G Agarose stored in preservation solution. Wash thoroughly with equilibration buffer to remove storage residues.

Pre-clearing (Optional): Incubate the cell lysate or pre-treated sample with Protein A/G Magnetic Beads or Protein A/G Agarose to remove non-specifically bound proteins.

Immunoprecipitation (IP): Add a specific antibody against the bait protein to the pre-cleared lysate and incubate to promote binding. Then add Protein A/G Magnetic Beads or Protein A/G Agarose to capture the antibody-protein complex and continue incubation.

Washing: Wash the complexes thoroughly to remove non-specifically bound proteins.

Elution: Add elution buffer to release the bound protein complexes.

Analysis: Analyze the eluted bait protein and its interacting partners by Western blot or mass spectrometry.

Quick Tip:

In endogenous Co-IP experiments, you can use Protein A/G Magnetic Beads or Protein A/G Agarose for immunoprecipitation. For exogenous Co-IP, where proteins are tagged (e.g., Flag, HA, c-Myc, GST), it is recommended to use tag-specific antibody-conjugated magnetic beads or agarose beads—such as Anti-Flag Magnetic Beads, Anti-HA Magnetic Beads, Anti-c-Myc Magnetic Beads, or Anti-GST Magnetic Beads. These can enhance target protein recovery and help reduce interference from IgG heavy and light chains.

Interpreting Co-IP Results

With the Co-IP workflow complete, we finally have some preliminary data in hand! But what exactly do these results reveal—and more importantly, how do we interpret them? Let's explore two classic case studies to learn how to make sense of Co-IP results and uncover the hidden "social network" of protein–protein interactions.

Interpretation of Endogenous Co-IP Results

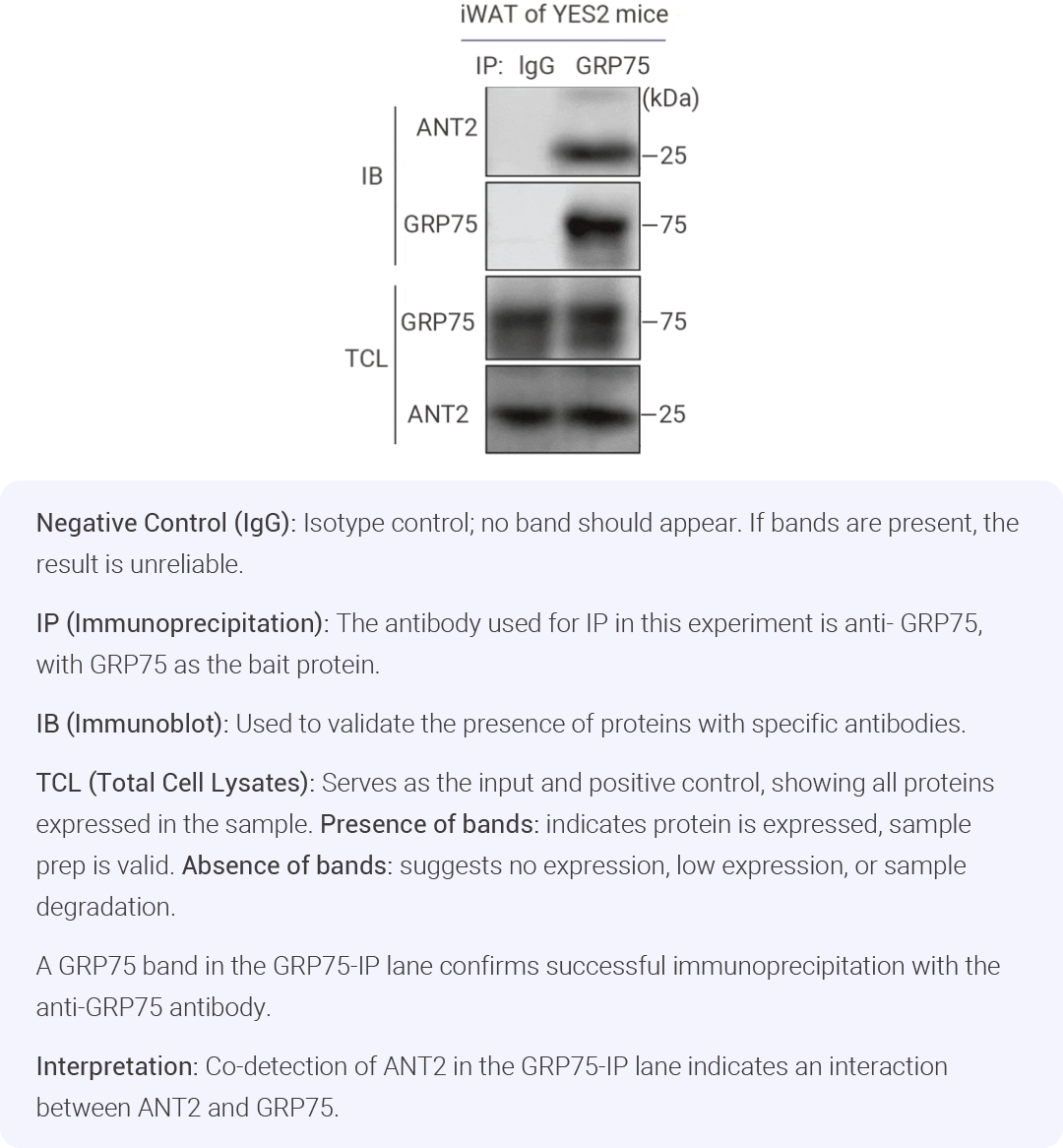

Figure 3. Endogenous interaction detected between ANT2 and GRP75.

Interpretation of Exogenous Co-IP Results

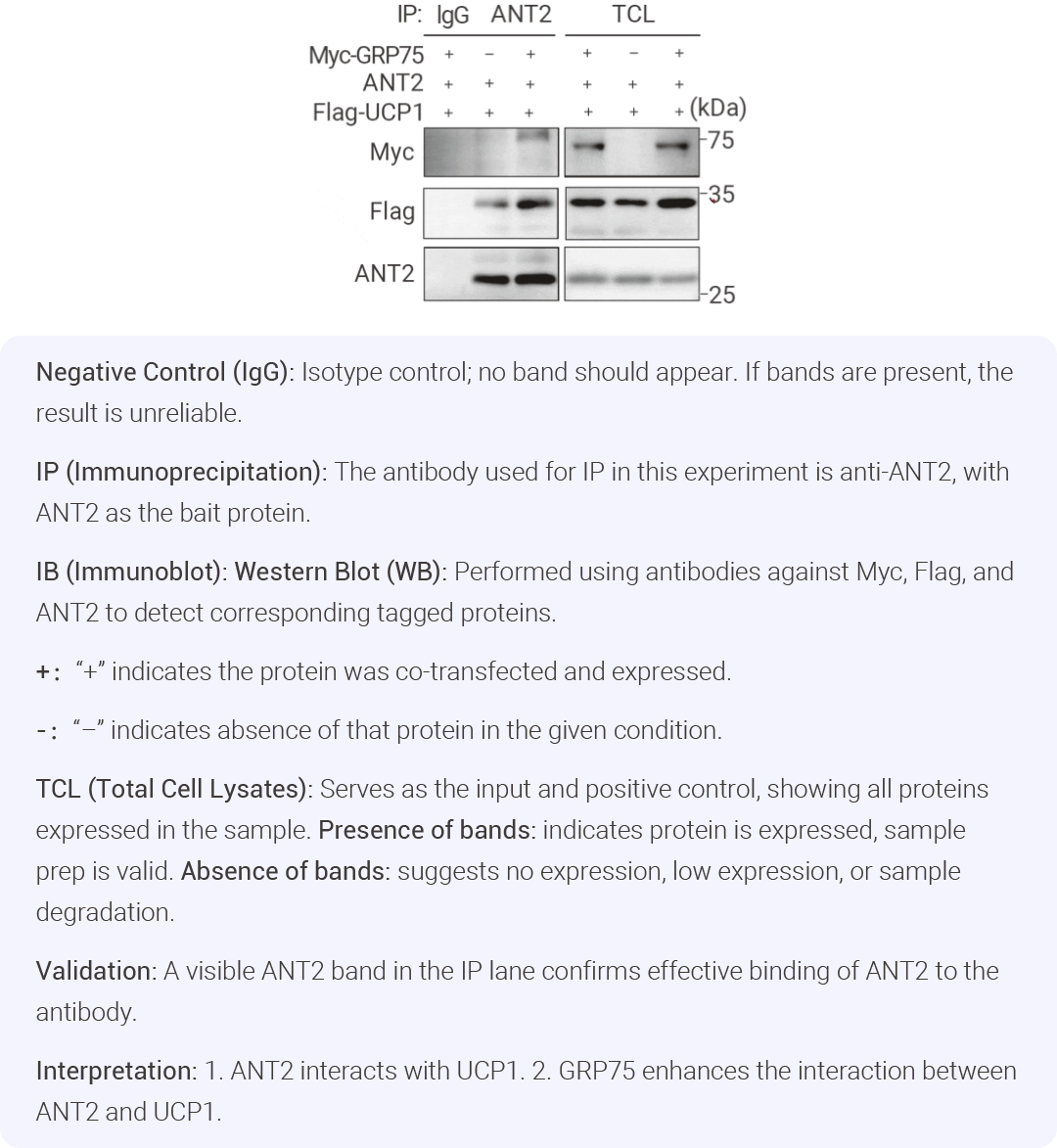

Figure 4. Overexpression of GRP75 enhances the interaction between ANT2 and UCP1.
III Co-IP Troubleshooting Guide: How to Perform It Efficiently and Accurately?

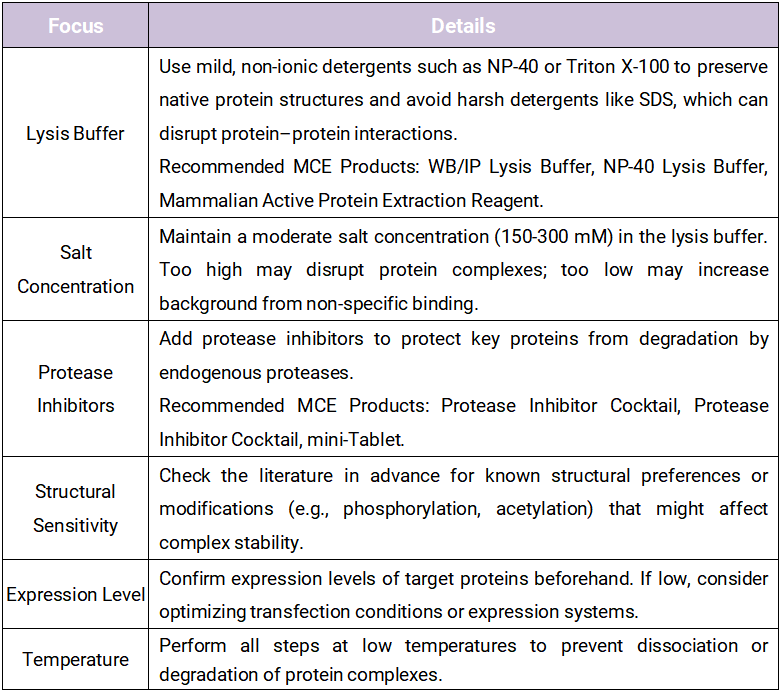

Sample Preparation — Laying a Solid Foundation

Successful protein pull-down requires optimal conditions—if the environment is not suitable, protein interactions are unlikely to occur.

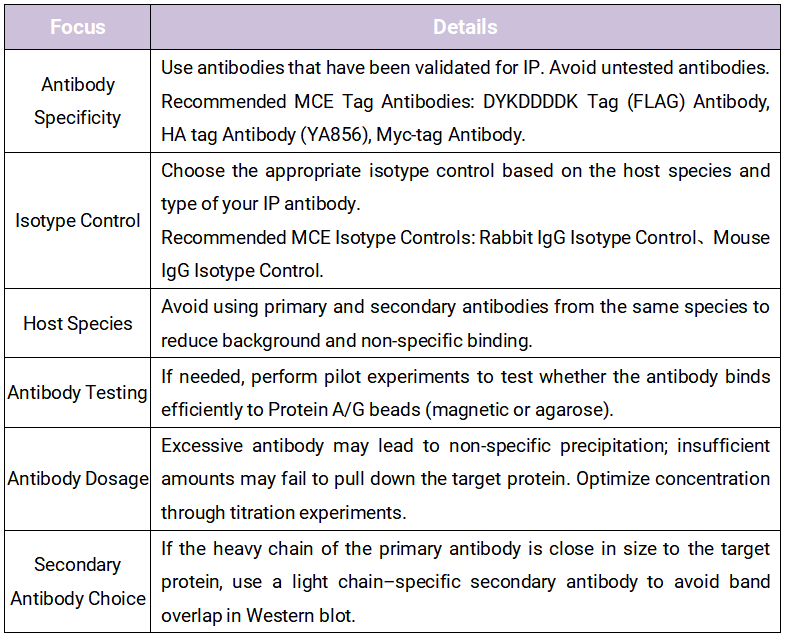

Antibody Selection: Precision Matters

Choosing the right antibody is critical—poor antibody selection can compromise the entire Co-IP experiment. Whether you're pulling down your protein of interest or reducing background noise, the antibody plays a decisive role.

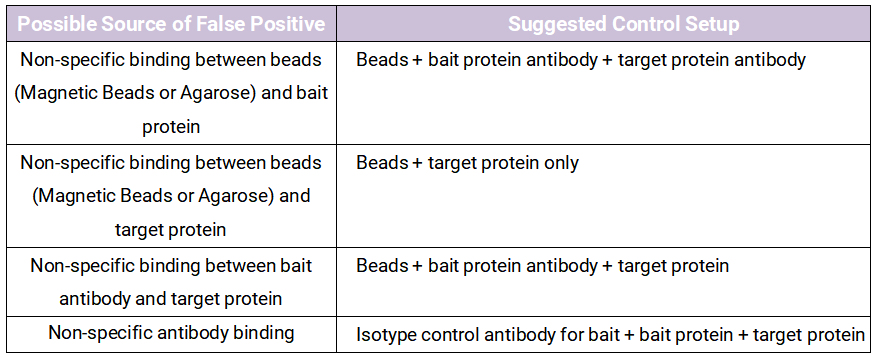

Experimental Design: Precision in Every Step

A successful Co-IP experiment involves more than just pulling down proteins—every step matters.

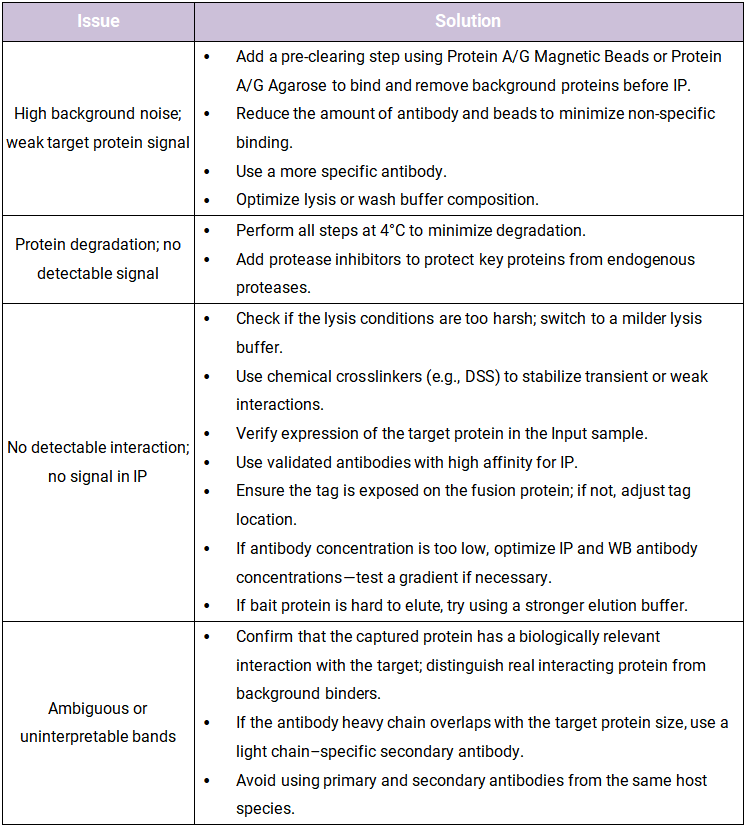

IV Common Issues and Troubleshooting Strategies

How to Elevate Your Co-IP Experiment to the Next Level?

Always keep thorough and accurate records of your experimental conditions and procedures. Detailed documentation is crucial not only for identifying the root causes of problems but also for continuously refining and improving your workflow.

Summary

Every Co-IP experiment is like a detective game—where we are not just executors, but also strategists. This is the true romance of scientific research: the thrill of uncovering the unknown through experiments, and revealing the mysteries of life through results.

If you found this Co-IP guide helpful, don’t forget to like and share! We look forward to hearing your insights and experiences in the comments. See you next time as we continue exploring experimental techniques—making research not a minefield, but a journey full of surprises.
