CY5-SE (Synonyms: Cy5 NHS Ester; Sulfo-Cyanine5 Succinimidyl Ester)

Cat. No.: HY-D0819 Purity: ≥98.0%: Data Sheet
SDS

COA
Handling Instructions
FAQs
Technical Support

Cy5-SE (Cy5 NHS Ester) is a reactive dye for the labeling of amino-groups in peptides, proteins, and oligonucleotides. This dye requires small amount of organic co-solvent (such as DMF or DMSO) to be used in labeling reaction. This reagent is ideal for very cost-efficient labeling of soluble proteins, as well as all kinds of peptides and oligonucleotides. This reagent also works well in organic solvents for small molecule labeling. Excitation (nm):649, Emission (nm): 670.

For research use only. We do not sell to patients.

CY5-SE Chemical Structure

CAS No. : 146368-14-1

Size	Stock	Quantity
5 mg	In-stock	Estimated Time of Arrival: December 31
10 mg	In-stock	Estimated Time of Arrival: December 31
25 mg	In-stock	Estimated Time of Arrival: December 31
50 mg	In-stock	Estimated Time of Arrival: December 31
100 mg	In-stock	Estimated Time of Arrival: December 31
200 mg	Get quote
500 mg	Get quote

or Bulk Inquiry

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 16 publication(s) in Google Scholar

Other Forms of CY5-SE:

CY5-SE triethylamine salt In-stock

16 Publications Citing Use of MCE CY5-SE

Featured Recommendations

•Related Small Molecules:

•Related Proteins:

Biological Activity
Purity & Documentation
References
Customer Review

Description

In Vitro

Protocol
1.Protein Preparetion
1) In order to obtain the best labeling effect, please prepare the protein (antibody) concentration as 2 mg/mL.
2) The pH value of protein solution shall be 8.5±0.5. If the pH is lower than 8.0, 1 M sodium bicarbonate shall be used for adjustment.
3) If the protein concentration is lower than 2 mg/mL, the labeling efficiency will be greatly reduced. In order to obtain the best labeling efficiency, it is recommended that the final protein concentration range is 2-10 mg/mL.
4) The protein must be in the buffer without primary amine (such as Tris or glycine) and ammonium ion, otherwise the labeling efficiency will be affected.
2.Dye Preparation
Add anhydrous DMSO into the vial of CY5-SE to make a 10 mM stock solution. Mix well by pipetting or vortex.
3.Calculation of dye dosage
The amount of CY5-SE required for reaction depends on the amount of protein to be labeled, and the optimal molar ratio of CY5-SE to protein is about 10.
Example: assuming the required marker protein is 500 μL 2 mg/mL IgG (MW=150,000), use 100 μL DMSO dissolve 1 mg CY5-SE, the required CY5-SE volume is 5.05 μL, and the detailed calculation process is as follows:
1) mmol (IgG) = mg/mL (IgG) × mL (IgG)/MW (IgG) =2 mg/mL × 0.5 mL/150,000 mg/mmol= 6.7×10^-6 mmol
2) mmol (CY5-SE) = mmol (IgG) × 10 = 6.7×10^-6 mmol×10 = 6.7 × 10^-5 mmol
3) μL (CY5-SE) = mmol (CY5-SE) ×MW (CY5-SE triethylamine salt)/mg/μL (CY5-SE) = 6.7 ×10^-5 mmol ×753.88 mg/mmol/0.01 mg/μL = 5.05 μL (CY5-SE)
4.Run conjugation reaction
1) A good volume of freshly prepared 10 mg/mL CY5-SE triethylamine salt is slowly added to 0.5 mL protein sample
In solution, gently shake to mix, then centrifuge briefly to collect the sample at the bottom of the reaction tube. Don'tmix well to prevent protein samples from denaturation and inactivation.
2) The reaction tubules were placed in a dark place and incubated gently at room temperature for 60 minutes at intervals.For 10-15 minutes, gently reverse the reaction tubules several times to fully mix the two reactants and raise the bar efficiency.
5.Purify the conjugation
The following protocol is an example of dye-protein conjugate purification by using a SepHadex G-25 column.
1) Prepare SepHadex G-25 column according to the manufacture instruction.
2) Load the reaction mixture (From "Run conjugation reaction") to the top of the SepHadex G-25 column.
3) Add PBS (pH 7.2-7.4) as soon as the sample runs just below the top resin surface.
4) Add more PBS (pH 7.2-7.4) to the desired sample to complete the column purification. Combine the fractions that contain the desired dye-protein conjugate.

MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

Molecular Weight

753.88

Formula

C₃₇H₄₃N₃O₁₀S₂

CAS No.

146368-14-1

Appearance

Solid

Color

Dark purple to black

Emission (Em)

670

Excitation (Ex)

633

SMILES

CC(/C(N1CCCCCC(ON2C(CCC2=O)=O)=O)=C\C=C\C=C\C3=[N+](CC)C(C=CC(S(=O)([O-])=O)=C4)=C4C3(C)C)(C)C5=C1C=CC(S(=O)(O)=O)=C5

Shipping

Room temperature in continental US; may vary elsewhere.

Storage

-20°C, sealed storage, away from moisture and light

*In solvent : -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture and light)

Solvent & Solubility

In Vitro:

DMSO : 25 mg/mL (33.16 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

H₂O : ≥ 5.88 mg/mL (7.80 mM)

*"≥" means soluble, but saturation unknown.

Preparing
Stock Solutions

Concentration Solvent Mass	1 mg	5 mg	10 mg

1 mM	1.3265 mL	6.6324 mL	13.2647 mL
5 mM	0.2653 mL	1.3265 mL	2.6529 mL
10 mM	0.1326 mL	0.6632 mL	1.3265 mL

View the Complete Stock Solution Preparation Table

* Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
Storage method and period of stock solution: -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture and light). When stored at -80°C, please use it within 6 months. When stored at -20°C, please use it within 1 month.

* Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.

Molarity Calculator
Dilution Calculator

Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

Concentration _(start) × Volume _(start) = Concentration _(final) × Volume _(final)

This equation is commonly abbreviated as: C₁V₁ = C₂V₂

Concentration _(start)

Volume _(start)

Concentration _(final)

Volume _(final)

In Vivo:

Select the appropriate dissolution method based on your experimental animal and administration route.

For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

Protocol 1

Add each solvent one by one: 10% DMSO 40% PEG300 5% Tween-80 45% Saline
Solubility: ≥ 2.5 mg/mL (3.32 mM); Clear solution

This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).
Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.
Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
Protocol 2

Add each solvent one by one: 10% DMSO 90% (20% SBE-β-CD in Saline)
Solubility: ≥ 2.5 mg/mL (3.32 mM); Clear solution

This protocol yields a clear solution of ≥ 2.5 mg/mL (saturation unknown).
Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (25.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.

For the following dissolution methods, please prepare the working solution directly. It is recommended to prepare fresh solutions and use them promptly within a short period of time.
The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

Protocol 1

Add each solvent one by one: Saline
Solubility: 25 mg/mL (33.16 mM); Clear solution; Need ultrasonic and warming and heat to 60°C

In Vivo Dissolution Calculator

Please enter the basic information of animal experiments:

Dosage

mg/kg

Animal weight
(per animal)

Dosing volume
(per animal)

μL

Number of animals

Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.

Please enter your animal formula composition:

DMSO +

Tween-80 +

Saline

Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.

The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).

Calculation results:

Working solution concentration: mg/mL

Method for preparing stock solution: mg drug dissolved in μL DMSO (Stock solution concentration: mg/mL).

*In solvent : -80°C, 6 months; -20°C, 1 month (sealed storage, away from moisture and light)

The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).

Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.

If the continuous dosing period exceeds half a month, please choose this protocol carefully.

Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.

Purity & Documentation

Purity: 98.10%

Select Batch:

Data Sheet (282 KB) SDS (393 KB)

COA (256 KB) HNMR (239 KB) LCMS (357 KB)

Handling Instructions (2659 KB)

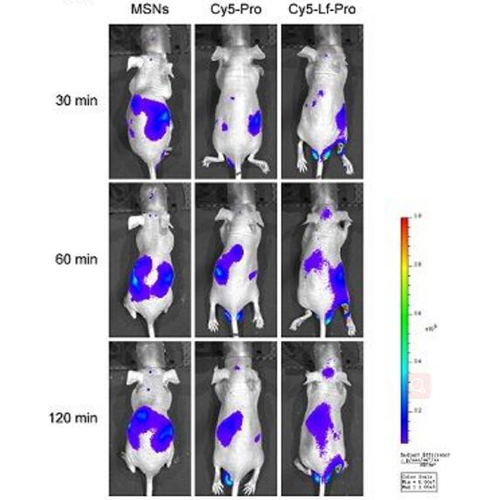

Dyeing Example

References

[1]. Jeon HY, et al. Array-Based High-Throughput Analysis of Silk-Elastinlike Protein Polymer Degradation and C-Peptide Release by Proteases. Anal Chem. 2016;88(10):5398-5405. [Content Brief]

Complete Stock Solution Preparation Table

Optional Solvent	Concentration Solvent Mass	1 mg	5 mg	10 mg	25 mg

H₂O / DMSO	1 mM	1.3265 mL	6.6324 mL	13.2647 mL	33.1618 mL
H₂O / DMSO	5 mM	0.2653 mL	1.3265 mL	2.6529 mL	6.6324 mL
DMSO	10 mM	0.1326 mL	0.6632 mL	1.3265 mL	3.3162 mL
	15 mM	0.0884 mL	0.4422 mL	0.8843 mL	2.2108 mL
	20 mM	0.0663 mL	0.3316 mL	0.6632 mL	1.6581 mL
	25 mM	0.0531 mL	0.2653 mL	0.5306 mL	1.3265 mL
	30 mM	0.0442 mL	0.2211 mL	0.4422 mL	1.1054 mL

* Note: If you choose water as the stock solution, please dilute it to the working solution, then filter and sterilize it with a 0.22 μm filter before use.
